Name: Sanitary Intake/Outfall

Display Field: PERMITNAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: Flared: the funnel-shaped widening of a pipe, to facilitate flow into or out of a pipe. The Intake Outfall structure is generally referred to as the ‘end of pipe’ or ‘flared end section.’ This structure will not have a ‘top elevation.’ The Intake Outfall structure cover should be ‘none.’

Copyright Text: As-Builts, Work Orders, Perpetual

Default Visibility: false

MaxRecordCount: 8000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 869172.5470790975
YMin: 1053625.0781854466
XMax: 873754.3991358466
YMax: 1055578.4437012896
Spatial Reference: 102696  (102696)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSSquare
Color: [255, 170, 0, 255]
Size: 6.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• FACILITYID ( type: esriFieldTypeString, alias: FACILITYID, length: 50 )
• ENABLED ( type: esriFieldTypeSmallInteger, alias: Enabled , Coded Values: [0: False] , [1: True] )

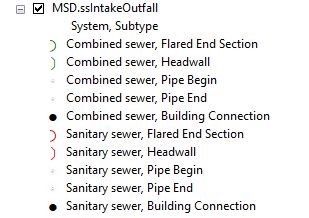

• SUBTYPE ( type: esriFieldTypeInteger, alias: Subtype , Coded Values: [1: Headwall] , [2: Flared End Section] , [3: Pipe Begin] , ...2 more... )
• SYSTEM ( type: esriFieldTypeString, alias: System, length: 50 , Coded Values: [S: Sanitary sewer] , [D: Storm sewer] , [C: Combined sewer] )
• TOPELEVATION ( type: esriFieldTypeDouble, alias: TopElevation )
• INVERTELEVATION ( type: esriFieldTypeDouble, alias: InvertElevation )
• DIAMETER ( type: esriFieldTypeDouble, alias: DIAMETER )
• INOUTTYPE ( type: esriFieldTypeString, alias: InOutType, length: 50 , Coded Values: [Intake: Intake] , [Discharge: Discharge] , [Discharge CSO: Discharge CSO] )
• PERMITID ( type: esriFieldTypeString, alias: PERMITID, length: 50 )
• PERMITNAME ( type: esriFieldTypeString, alias: PERMITNAME, length: 50 )
• OWNERSHIP ( type: esriFieldTypeString, alias: Ownership, length: 50 , Coded Values: [1: MSD] , [2: Private] , [3: County] , ...8 more... )
• OPID ( type: esriFieldTypeString, alias: OPID, length: 50 )
• MAPDATE ( type: esriFieldTypeDate, alias: MAPDATE, length: 8 )
• SYMBOLROTATION ( type: esriFieldTypeDouble, alias: SYMBOLROTATION )
• PJOBID ( type: esriFieldTypeString, alias: PJOBID, length: 50 )
• MSLINK ( type: esriFieldTypeInteger, alias: MSLINK )
• ANCILLARYROLE ( type: esriFieldTypeSmallInteger, alias: AncillaryRole )
• ALTID ( type: esriFieldTypeString, alias: ALTID, length: 50 )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• INSERVICEDATE ( type: esriFieldTypeDate, alias: INSERVICEDATE, length: 8 )
• COMBINEDID ( type: esriFieldTypeString, alias: COMBINEDID, length: 50 )
• REHABDATE ( type: esriFieldTypeDate, alias: REHABDATE, length: 8 )
• REHABTYPE ( type: esriFieldTypeString, alias: REHABTYPE, length: 50 )
• MXCREATIONSTATE ( type: esriFieldTypeSmallInteger, alias: MXCREATIONSTATE )
• MXSITEID ( type: esriFieldTypeString, alias: MXSITEID, length: 8 )
• MXASSETNUM ( type: esriFieldTypeString, alias: MXASSETNUM, length: 30 )
• MXASSETLOC ( type: esriFieldTypeString, alias: MXASSETLOC, length: 40 )
• STATUS ( type: esriFieldTypeSmallInteger, alias: STATUS , Coded Values: [1: Active] , [2: Abandoned] , [3: Removed] , ...5 more... )
• ROWSTAMP ( type: esriFieldTypeString, alias: ROWSTAMP, length: 50 )
• LAST_MODIFIED_BY ( type: esriFieldTypeString, alias: LAST_MODIFIED_BY, length: 50 )
• LAST_MODIFIED_DATE ( type: esriFieldTypeDate, alias: LAST_MODIFIED_DATE, length: 8 )
• SOURCE ( type: esriFieldTypeString, alias: SOURCE, length: 50 )
• GPS_X ( type: esriFieldTypeDouble, alias: GPS_X )
• GPS_Y ( type: esriFieldTypeDouble, alias: GPS_Y )
• GPS_Z ( type: esriFieldTypeDouble, alias: GPS_Z )
• LAST_JOBID ( type: esriFieldTypeString, alias: LAST_JOBID, length: 50 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )

Supported Operations:   Query   Query Attachments   Generate Renderer   Return Updates
